Wireless communication is essential for daily life, enabling activities like video streaming and IoT. As demand for faster, more reliable networks grows, tackling interference—unwanted signals disrupting communication—remains a challenge.
LTE and 5G networks address this with techniques like enhanced Inter-Cell Interference Coordination (eICIC) and Coordinated Multi-Point (CoMP), which reduce interference to optimize performance and improve user experience.
Understanding Interference in Wireless Networks
In any wireless network, signals are transmitted through the air as radio waves. Interference occurs when unwanted signals disrupt the primary signal traveling from a transmitter to a receiver. This is particularly common in cellular networks, where multiple cell towers (or base stations) serve many users in overlapping areas.

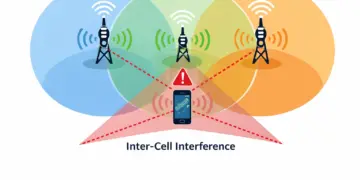

This overlap creates a problem known as Inter-Cell Interference (ICI). Imagine you’re at a crowded party trying to have a conversation. The chatter from other groups makes it difficult to hear the person you’re speaking with. In a cellular network, a user’s device (like a smartphone) might pick up signals from neighboring cells in addition to its primary serving cell.
This is especially problematic for users at the edge of a cell’s coverage area, where the signal from their serving cell is weaker and signals from neighboring cells are relatively strong. The result is a lower signal-to-interference-plus-noise ratio (SINR), which leads to slower data speeds and dropped connections.
To address this, network engineers have developed sophisticated techniques to coordinate transmissions between cells and minimize this disruptive interference.
What is eICIC (Enhanced Inter-Cell Interference Coordination)?
Enhanced Inter-Cell Interference Coordination, or eICIC, is a technique introduced in LTE-Advanced networks to manage interference in heterogeneous networks (HetNets). HetNets are networks that use a mix of large, high-power macro cells and smaller, low-power pico or femto cells to increase capacity and coverage.
While these small cells improve service in targeted areas, they can also create significant interference for the larger macro network. eICIC addresses this by coordinating transmissions between the different cell types.
How eICIC Works
The primary mechanism behind eICIC is the use of Almost Blank Subframes (ABS). A macro cell can designate certain time slots (subframes) as “almost blank,” meaning it significantly reduces or completely stops transmitting data during these periods.
- Coordination: The macro cell communicates its ABS pattern to the smaller pico cells within its coverage area.
- Scheduling: During these quiet periods created by the ABS, the pico cells can schedule transmissions to their users, particularly those at the cell edge who would otherwise suffer from strong interference from the macro cell.
- Reduced Interference: By creating these protected time windows, eICIC allows cell-edge users in the pico cell’s range to communicate with much lower interference, dramatically improving their connection quality and data rates.
Essentially, eICIC creates a time-based separation, allowing different network layers to share the same frequency spectrum without interfering with one another. This coordination is crucial for densifying networks with small cells and delivering consistent performance.
What is CoMP (Coordinated Multi-Point)?
Coordinated Multi-Point (CoMP) is another advanced interference management technique that takes a more collaborative approach. Instead of simply muting transmissions to avoid interference, CoMP allows multiple, geographically separated base stations to work together to serve a single user.
The core idea is to turn interfering signals from neighboring cells into useful signals.CoMP is particularly effective for users located at the cell edge, where signals from multiple cells are of similar strength.
How CoMP Works
There are two main approaches to CoMP, each with distinct methods of coordination:
- Coordinated Scheduling/Beamforming (CS/CB): In this method, the user is still connected to a single primary cell. However, the serving cell coordinates its transmission schedule and beamforming decisions with neighboring cells.
- These neighboring cells adjust their own transmissions to avoid causing interference to the user. For example, a neighboring cell might direct its signal beam away from the user or schedule its transmissions at a different time or on a different frequency resource. The data for the user still comes from one point, but the transmission is coordinated across multiple points.
- Joint Processing (JP): This is a more advanced form of CoMP where multiple base stations simultaneously transmit data to a single user (in the downlink) or receive data from a user (in the uplink).
- Downlink JP: Data for the user is available at multiple base stations, and they all transmit the signal to the user at the same time. The user’s device then combines these signals, effectively turning potential interference into a stronger, more robust signal.
- Uplink JP: When the user transmits data, multiple base stations receive the signal. These received signals are then combined at a central processing unit. This increases the chances of a successful data reception, even if the signal is weak at one of the receiving points.
By transforming interference into a valuable signal, CoMP significantly boosts performance for cell-edge users, leading to higher data rates and more reliable connections across the entire network.
Benefits of Advanced Interference Management
The implementation of techniques like eICIC and CoMP offers substantial advantages for both network operators and end-users:
- Improved Cell-Edge Performance: The most significant benefit is the dramatic improvement in data rates and reliability for users at the edge of a cell’s coverage.
- Increased Network Capacity: By mitigating interference, the overall spectral efficiency of the network is enhanced, allowing more data to be transmitted over the same amount of frequency spectrum.
- Enhanced User Experience: Users experience more consistent speeds and fewer dropped connections, whether they are stationary or moving through the network.
- Efficient Spectrum Utilization: These techniques allow for more aggressive frequency reuse, where the same frequencies can be used in adjacent cells, thereby maximizing the use of limited spectrum resources.
Challenges and Future Directions
While eICIC and CoMP are powerful, their implementation is not without challenges. These techniques require high-speed, low-latency backhaul connections and robust digital infrastructure solutions between cooperating base stations to exchange control information in real time. This synchronization, known as the X2 interface in LTE, must be robust and fast.
Furthermore, the computational complexity of scheduling and coordinating transmissions across multiple cells increases significantly. As networks become even denser with the rollout of 5G and beyond, the scale of this coordination problem will grow exponentially.
Looking ahead, the evolution of interference management will likely involve greater use of machine learning and artificial intelligence.
AI algorithms can analyze network conditions in real time and make predictive, dynamic adjustments to interference coordination strategies, moving beyond predefined rules to a more adaptive and intelligent system.
Conclusion
Interference management is key to modern wireless network design. Techniques like eICIC and CoMP help address interference challenges, enabling dense, high-capacity networks to meet growing data demands. These technologies will be crucial as connectivity expands.
